Learn more about metering pumps

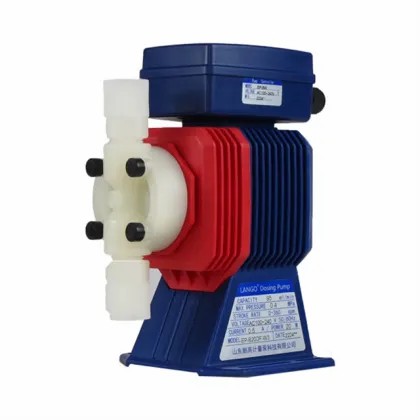

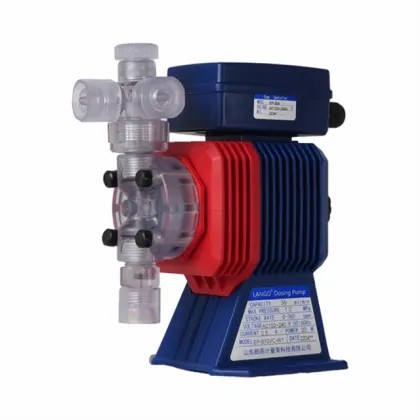

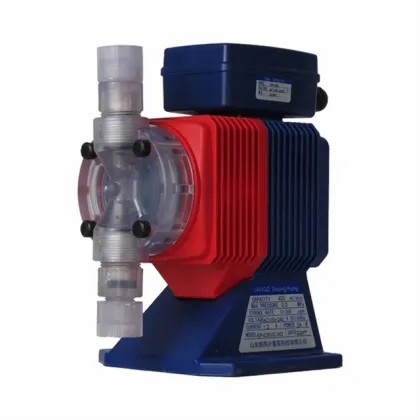

EP serial is a digital solenoid driven metering pumps with manual adjustment both by frequency speed and mechanical stroke length regulation, with LED display with frequency. It is a reliable and economic dosing pump for chemical dosing.
Main Performance Parameters
Max Flow Rate: 24L/H
Max Pressure: 10 Bars
Steady State Accuracy: ± 2% between 30% and 100% of rated flow rate
Allowable Ambient Temperature: 0～40°C.
Allowable Liquid Temperature: 0～40°C(PVC) 0～60°C(PVDF/SS)
Voltage: Wide range AC100~240V,50~60Hz
Max Stroke: 360 spm
Main Features
LED display the frequency rate
Manual flow adjustment both by frequency speed and stroke length
Modular design, liquid end, drive module, control module are isolated from each other
Coil full plastic seal, integrated molding, built-in thermal protection sensor
Composite PTFE diaphragm with EPDM back baffle structure

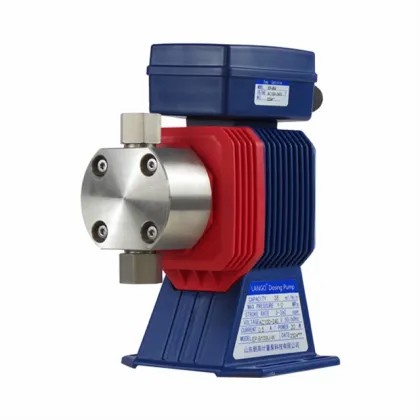

Various pump head materials such as PVC, PVDF, SS316, etc
Parameter Table
|
Model |
Flow |
Pressure |
Stroke Flow Rate |
Max Speed |
Power |
|
EP-B10 |
2.28 |
10 |
0.05～0.11 |
360 |
20W |
|
EP-B15 |
3.9 |
7 |
0.09～0.18 |
360 |
20W |
|
EP-B20 |
5.7 |
4 |
0.13～0.26 |
360 |
20W |
|
EP-B30 |
12 |
2 |
0.28～0.56 |
360 |
20W |
|
EP-C15 |
4.8 |
10 |
0.09～0.22 |
360 |
24W |
|
EP-C20 |
7.8 |
7 |
0.14～0.36 |
360 |
24W |
|
EP-C30 |
16.2 |
3.5 |
0.3～0.75 |
360 |
24W |
|
EP-C35 |
24 |
2 |
0.44～1.11 |
360 |
24W |
Liquid End Material
|
Head |
Ball |
Seat |
Cover |
Gasket |
Oring |
Diaphragm |
|
PVC |
Ceramic |
FKM/EPDM |
PVC |
PTFE |
FKM/EPDM |
Composite PTFE |
|
PVDF |
Ceramic |
FKM |
PVDF |
PTFE |
PTFE |
|
|
SS316 |
SS316 |
SS316 |
SS316 |
PTFE |
PTFE |
Connection
|
Model |
PVC |
PVDF |
SS316 |
|
EP-B10 |
4×9mm/4*6mm |
4*6mm PTFE tube |
1/4" female thread |
|
EP-B15 |
4×9mm/4*6mm |
4*6mm PTFE tube |
1/4" female thread |
|
EP-B20 |
4×9mm/4*6mm |
4*6mm PTFE tube |
1/4" female thread |
|
EP-B30 |
8×13mm PVC tube |
8*10mm PTFE tube |
1/4" female thread |
|
EP-C15 |
4×9mm/4*6mm |
4*6mm PTFE tube |
1/4" female thread |
|
EP-C20 |
4×9mm/4*6mm |
4*6mm PTFE tube |
1/4" female thread |
|
EP-C30 |
8×13mm PVC tube |
8*10mm PTFE tube |
1/4" female thread |
|
EP-C35 |
8×13mm PVC tube |
8*10mm PTFE tube |
1/4" female thread |
Identification Code
|
ID |
EP |
B |
10 |
VC |
W |
1 |
C |
|
Item |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
Code |
Model |
Power |
Diaphragm |
Material |
Voltage |
Connection |
Plug |
|
Item |
Code |
Description |
|
1 |
EP |
EP model |
|
2 |
B |
Power 20W |
|
C |
Power 24W |
|
|
3 |
10 |
Diaphragm effective diameter 10mm |
|
15 |
Diaphragm effective diameter 15mm |
|
|
20 |
Diaphragm effective diameter 20mm |
|
|
30 |
Diaphragm effective diameter 30mm |
|
|
35 |
Diaphragm effective diameter 35mm |
|
|
4 |
VC |
PVC head/Ceramic ball/FKM seat/PVC cover/PTFE gasket/FKM O ring |
|
VH |
PVC head/Ceramic ball/EPDM seat/PVC cover/PTFE gasket/EPDM O ring |
|
|
DF |
PVDF head/Ceramic ball/PTFE seat/PVDF cover/PTFE gasket/FTFE O ring |
|
|
SU |
SS316 head/SS316 ball/SS316 seat/SS316 cover/PTFE gasket/PTFE O ring |
|
|
5 |
W |
AC100~240V,50~60Hz |
|
6 |
1 |
ø4×6mm (PVC transparent tube 3m) |
|
2 |
ø4×6mm (PE tube 3m) |
|
|
3 |
ø4×9mm (PVC transparent braided tube 3m) |
|
|
4 |
ø8×13mm (PVC transparent braided tube 3m) |
|
|
5 |
ø4×6mm (PTFE transparent tube 3m) |
|
|
6 |
ø8×10mm (PTFE transparent tube 3m) |
|
|
7 |
1/4'' female thread |
|
|
7 |
A |
Australia, New Zealand, Taiwan |
|
B |
British |
|
|
C |
China |
|
|
E |
Europe |
|
|
U |
United States |
|
|
S |
South Africa |
|
|
X |
No Plug |
Water treatment, waste water treatment, food&beverage, chemical, general industry, etc.
