Bladder Damper

Bladder damper is separated from airbags, high sensitivity of airbags, good pulse effect, and can withstand high pressure.

During the work, the liquid in the pipeline compressed the airbag, the airbag contracted, and then expanded to compensate for the pressure loss of the pipeline, thereby achieving a cushioning effect. Compared with the diaphragm, the bladder type damper has    higher sensitivity, better buffer effect, and the volume can be much larger than the diaphragm. However, because its airbag

material is generally made of rubber, its use range is not widely used.

Method of volume selection: The volume (milliliter) of each rushing journey is multiplied by 10, that is, the minimum volume that can reduce the pulse of 90%.

Body Material: PVC/SS304/SS316

Bladder Type Airbag Mateiral: FKM/EPDM/NBR/Butyl Capacity: 0.35-16L(Standard), bigger size on request

Working Pressure: 0. 1-1Mpa(PVC) ; 0.1-2.5Mpa or 0. 1-5Mpa,0. 1-10Mpa,0. 1-20Mpa,0.1-31.5Mpa( Stainless Steel) Connection type: Female Thread/Flange

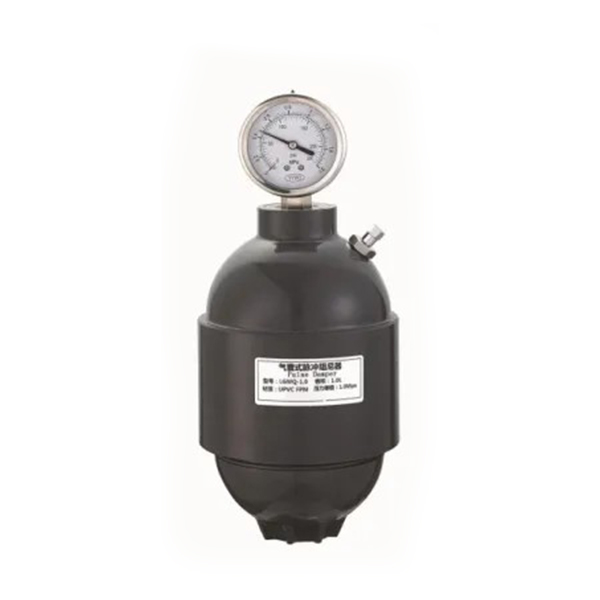

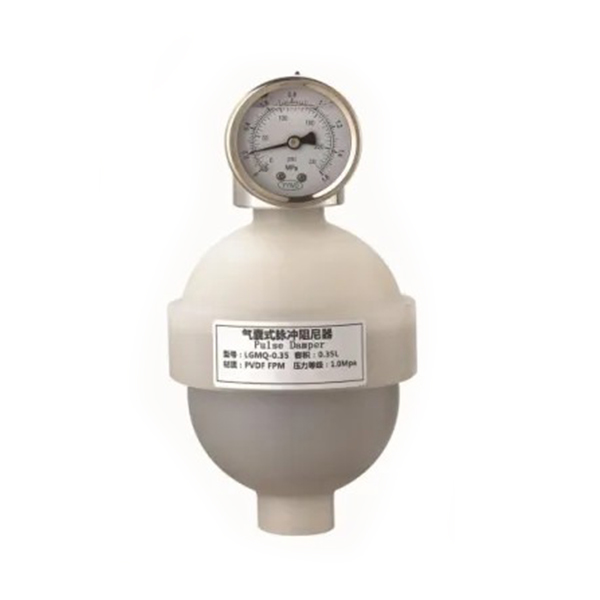

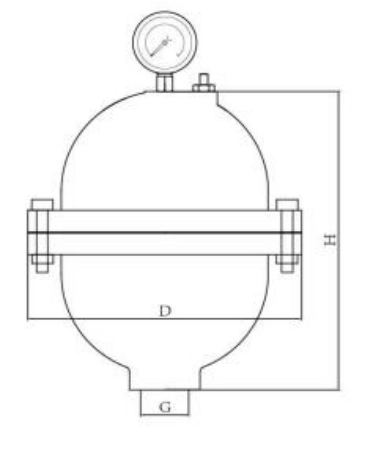

Bladder Damper (PVC)

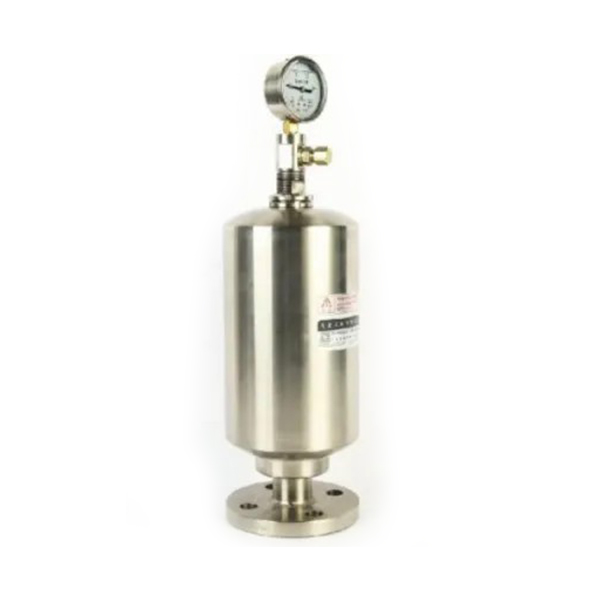

Bladder Damper (SS304/SS316)
