Learn more about metering pumps

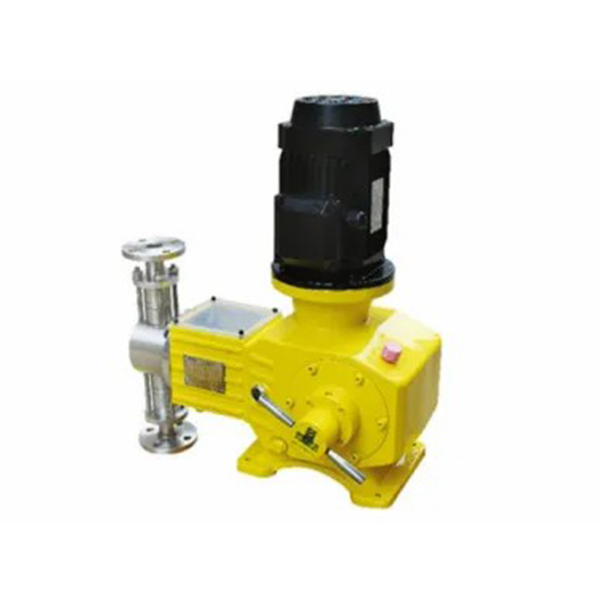

J3.0 series plunger metering pump overcurrent parts can be made of materials such as 304SS, 316SS, 20 gauge alloy, Hastelloy alloy, ceramics, etc. Flow control mode: manual/automatic stroke adjustment/digital frequency conversion control to achieve automatic control of external signals.
Maximum rated flow rate: 5-620L/H
Maximum rated discharge pressure: 50Mpa
Suitable medium temperature: ≤ 250 ℃
Optional materials for overcurrent components: 304SS, 316SS, 20 gauge alloy, Hastelloy alloy, ceramics, etc.
Flow control mode: manual/automatic stroke adjustment/digital frequency conversion control to achieve automatic control of external signals.
The pump can be adjusted in both running and stopped states
Flow stability viscosity ± 1%.
Import and export connection methods: sleeve type, welded pipe joint type, and flange connection
According to the user's process requirements, the pump head overcurrent can be made into insulation jacket type, electric heating type, etc.
| Model | Flow (L/H) |
Pressure (Mpa) |
Plunger Dia (mm) |
Stroke Length (mm) |
Speed (min-) |
Power (KW) |
Connection (DN) |
| J3.0-5/50 | 5 | 50 | φ6 | 28 | 135 | 0.75-1.5 | 8 |
| J3.0-10/50 | 10 | 50 | φ8 | 8 | |||
| J3.0-16/45 | 16 | 45 | φ10 | 8 | |||
| J3.0-22/35 | 22 | 35 | φ12 | 8 | |||
| J3.0-40/18 | 40 | 18 | φ16 | 8 | |||
| J3.0-65/12 | 65 | 12 | φ20 | 12 | |||
| J3.0-80/9 | 80 | 9 | φ22 | 12 | |||
| J3.0-100/7 | 100 | 7 | φ25 | 12 | |||
| J3.0-145/5 | 145 | 5 | φ30 | 15 | |||
| J3.0-170/4.5 | 170 | 4.5 | φ32 | 15 | |||
| J3.0-200/3.5 | 200 | 3.5 | φ36 | 15 | |||
| J3.0-250/3 | 250 | 3 | φ40 | 20 | |||
| J3.0-420/1.5 | 420 | 1.5 | φ50 | 20 | |||
| J3.0-620/1.0 | 620 | 1 | φ60 | 20 |
