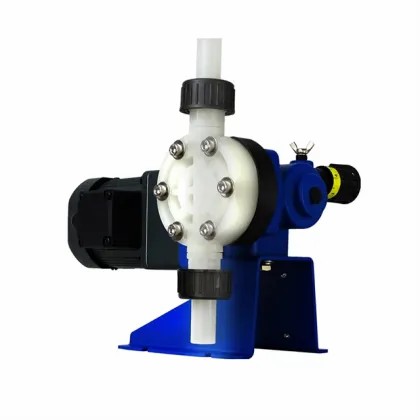

GY Serials Mechancial Diaphragm Pump

GY series are mechancial diaphragm metering pumps with max flow up to 200L/H and pressuer up to 10 bars. It is manual adjustment mechanical stroke length regulation. Different liqud end materials suitable for different chemicals dosing.

Main Performance Parameters

• Max Flow Rate: 200L/H

• Max Pressure: 10 Bars

• Steady State Accuracy: ± 2% between 30% and 100% of rated flow rate

• Allowable Ambient Temperature: 0～40°C.

• Allowable Liquid Temperature: 0～40°C(PVC) 0～60°C(PVDF/SS)

• Voltage: 110V/220V/380V/DC 12V/DC24V/Ohters on request



Main Features

• Manual flow adjustment mechanical stroke length regulation

• Reboust design,easy to install

• NSK bearing

• Composite PTFE diaphragm with EPDM back baffle structure

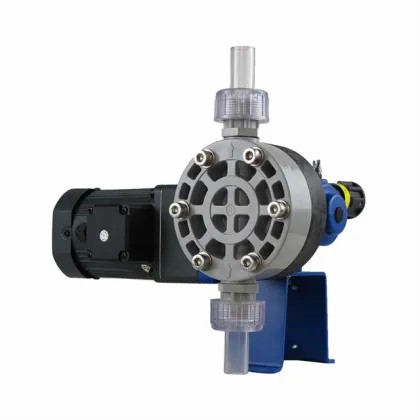

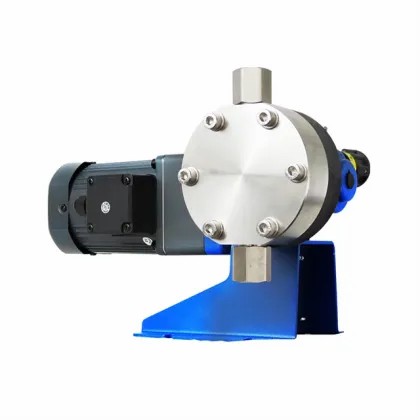

• Various pump head materials such as PVC, PVDF, SS316, etc

• The protection level has been raised to F level IP55

Parameter Table

Reference flow rate under different pressure

Liquid End Material

Connection

Note:

1. Tested by clean water at normal temperature,, suction height 1 meters, stroke length 100%

2. Back pressure valve is required for stable and accurate discharge.

3. Stroke length adjustment mode: manual adjustment during stop and operation.

4. Liquid temperature: -10 to +40°C for PVC; -10 to +80°C for PVDF & SS

4. Optional for motors: DC12V,DC24V,110V 1ph, 220V 1 ph, 380V 3ph

Identification Code

OPTIONAL ACCESSORIES

Water treatment, waste water treatment, food&beverage, chemical, general industry, etc.
