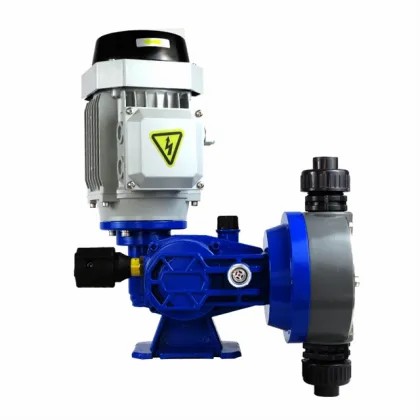

GX Serials Mechanical Diaphragm Pump

GY series are spring return return mechancial diaphragm metering pumps with max flow up to 400L/H and pressuer up to 5 bars. It is rebust and reliable dosing pumps for water and industries.

1. GX diaphragm metering pump is compact, energy saving, provides high precision metering.

2. The pump comes in three models, with a maximum displacement of 400LPH

3. The diaphragm of GX diaphragm metering pump is composite PTFE.

4. Pump head materials: PVC/PVDF/SS

5. Optional explosion-proof motor or variable frequency motor.

Main Performance Parameters

• Max Flow Rate: 400L/H

• Max Pressure: 5 Bars Steady State Accuracy: ± 2% between 30% and 100% of rated flow rate

• Allowable Ambient Temperature: 0～40°C.

• Allowable Liquid Temperature: 0～40°C(PVC) 0～60°C(PVDF/SS)

• Voltage: 110V/220V/380V/DC 12V/DC24V/Ohters on request

• Motor: Standard IE3 motor, VF motor, explosion-proof motor



Main Features

• Manual flow adjustment mechanical stroke length regulation

• Reboust design,easy to install

• Spring return design with superior dosing performance

• Composite PTFE diaphragm with EPDM back baffle structure

• Various pump head materials such as PVC, PVDF, SS316, etc

Parameter Table

Liquid End Material

Connection

Note:

1. Tested by clean water at normal temperature,, suction height 1 meters, stroke length 100%

2. Back pressure valve is required for stable and accurate discharge.

3. Stroke length adjustment mode: manual adjustment during stop and operation.

4. Liquid temperature: -10 to +40°C for PVC; -10 to +80°C for PVDF & SS pressure valve is required for stable and accurate discharge.

Identification Code

Installation Dimensions

Water treatment, waste water treatment, chemical, general industry, etc.
