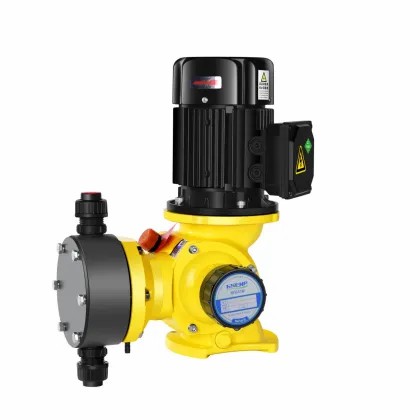

Learn more about metering pumps
Main Performance Parameters
Max FlowRate: 2040L/H
Max Pressure: 12 Bars
Steady State Accuracy: ± 2% between 30% and 100% of rated flow rate
Allowable Ambient Temperature: 0～40°C.
Allowable Liquid Temperature: 0～40°C(PVC) 0～60°C(PVDF/SS)
Voltage: 110V/220V/380V/Ohters on request
Motor: IP55;Standard IE3 motor, VF motor, explosion-proof motor
Can be equiped with digital stroke controller(4-20mA signal)
Main Features
Variable eccentric mechanism adjustment ensures smooth flow.
Enhanced structural design, suitable for harsh operating environments. Wear resistant ball bearings make work more stable.
Oil bath lubrication prolongs the working life of driving components.
Flow can be adjusted in both shutdown and operation states, and the adjustment method can be manual, electric, or variable frequency.
Applications
In the fields of environmental protection, oil and chemical industry, chemical industry, refining, electricity, metallurgy, medicine, chemicals, water treatment, etc.
Parameter Table
|
Model |
Flow Rate (L/H) |
Pressure (Bar) |
Strokes (spm) |
Power (kw) |
|
GM0002 |
2.25 |
12 |
36 |
Standard: 0.25kw 3ph 1 phase/VF/EX Motor: 0.37kw |
|
GM0005 |
4.5 |
36 |
||
|
GM0010 |
9 |
36 |
||
|
GM0025 |
25 |
72 |
||
|
GM0050 |
50 |
10 |
144 |
|
|
GM0090 |
85 |
7 |
72 |
|
|
GM0120 |
115 |
72 |
||
|
GM0170 |
170 |
144 |
||
|
GM0240 |
235 |
144 |
||
|
GM0330 |
315 |
5 |
144 |
|
|
GM0400 |
400 |
144 |
0.37kw |
|
|
GM0500 |
500 |
180 |
|
GB0080 |
82 |
10 |
36 |
Standard/Ex: 0.55kw 3ph 1 phase/VF Motor: 0.75kw |
|
GB0180 |
167 |
72 |
||
|
GB0250 |
237 |
102 |
||
|
GB0350 |
334 |
144 |
||
|
GB0450 |
416 |
180 |
||
|
GB0500 |
464 |
7 |
144 |
|
|
GB0600 |
583 |
180 |
||
|
GB0700 |
656 |
3.5 |
102 |
|
|
GB1000 |
946 |
144 |
||
|
GB1200 |
1200 |
180 |
0.75kw |
|
|
GB1500 |
1500 |
3 |
180 |
|
|
GB1800 |
1800 |
206 |
||
|
GB2000 |
2040 |
206 |
Liquid End Material
|
Head |
Ball |
Seat |
Cover |
Gasket |
Oring |
Diaphragm |
Model |
|
PVC |
Ceramic |
PVDF |
PVC |
PTFE |
FKM |
Composite PTFE |
GM0002~ GM0500 |
|
PVDF |
Ceramic |
PVDF |
PVDF |
PTFE |
FKM |
||
|
SS316 |
SS316 |
SS316 |
SS316 |
PTFE |
FKM |
Note: O ring material options: EPDM; Coated with PTFE
|
Head |
Ball |
Seat |
Cover |
Gasket |
Oring |
Diaphragm |
Model |
|
PVC |
Ceramic |
PVDF |
PVC |
PTFE |
FKM |
Composite PTFE |
GB0080~ GB1200 |
|
PVDF |
Ceramic |
PVDF |
PVDF |
PTFE |
FKM |
||
|
SS316 |
SS316 |
SS316 |
SS316 |
PTFE |
FKM |
Note: O ring material options: EPDM; Coated with PTFE
|
Head |
Valve Core |
Seat |
Cover |
Gasket |
Spring |
Oring |
Diaphragm |
Model |
|
PVC |
PVC |
PVDF |
PVC |
PTFE |
Hastelloy C276 |
FKM |
Composite PTFE |
GB1500~ GB2000 |
|
PVDF |
PVDF |
PVDF |
PVDF |
PTFE |
Hastelloy C276 |
FKM |
||
|
SS316 |
SS316 |
SS316 |
SS316 |
PTFE |
Hastelloy C276 |
PTFE |
Note: PVC&PVDF head O ring material options: EPDM
Connection
|
Model |
PVC |
PVDF |
SS316 |
|
GM0002- 0050 |
DN15 glue union/ 1/2" F/6* 12mm hose/ 12* 18mm hose |
1/2'' F/6.35x9.52mm hose |
1/2" F |
|
GM0090- 0500 |
DN15 glue union/ 1/2" F/20*28mm hose |
1/2" F |
1/2" F |
|
GB0080- 0450 |
DN15 glue union/ 1/2" F |
1/2" F |
1/2" F |
|
GB0500- 1200 |
DN25 glue union/ 1" F |
1" F |
1" M |
|
GBS150 0-2000 |
DN40 glue union/ 1.5" F |
1.5" F |
1.5" M |
Identification Code
|
ID |
GM |
0002 |
P |
U |
1 |
|
Item |
1 |
2 |
3 |
4 |
5 |
|
Code |
Model |
Flow |
Liquied end |
Connection |
Motor |
|
Item |
Code |
Description |
|
|
1 |
GM/GB |
GM GB model |
|
|
2 |
Flow |
detailed flow rate and pressure see above table |
|
|
3 |
P |
PVC |
|
|
S |
PVDF |
||
|
T |
SS316 |
||
|
F |
Sodium hypochlorite application: PVC liquid end( EPDM O ring) |
||
|
V |
High viscosity application: PVC liquid end |
||
|
K |
Slurry application: GM0025-0500 316 liquid end; GB PVC liquid end |
||
|
M |
Mixture application, GM: PVDF liquid end |
||
|
Z |
other request |
||
|
4 |
P |
NPT Thread |
|
|
Q |
Glue Union |
||
|
R |
Hose |
||
|
H |
High viscosity application for GM:12* 18mm hose /20*28mm hose |
||
|
X |
other request |
||
|
5 |
Code |
GM |
GB |
|
1 |
0.25kW ,IEC71,3PH,IP55/F |
0.55kW ，IEC80 ，3PH ，IP55/F |
|
|
2 |
/ |
/ |
|
|
3 |
0.37kW ,IEC71,3PH,EX,IP55/F,dllBT4 |
0.55kW ,IEC80,3PH,EX ，IP55/F ，dllBT4 |
|
|
4 |
0.37kW ,IEC71,3PH,IP55/F |
0.75kW ,IEC80 ，3PH ，IP55/F |
|
|
5 |
0.25kW ,IEC71, 1 PH,IP55/F |
0.75kW ,IEC80 ，3PH, EX ，IP55/F， |
|
|
6 |
0.25kW ,IEC71,VF,3PH,IP55/F,IC416 |
0.55kW ,IECd8ll |
|
|
7 |
0.37kW ,IEC71,VF,3PH,IP55/F,IC416 |
0.75kW ，IEC80, 1PH ，IP55/F |
|
|
8 |
/ |
/ |
|
|
9(5) |
Without motor, with IEC71motor base |
Without motor, with IEC71motor base |
|
|
9(6) |
0.37kW ，IEC71 ，1PH,IP55/F |
/ |
|
|
9(8) |
/ |
Without motor, with IEC80 motor base |
|
|
9 |
Other Motor |
Other Motor |
|
